Mobile stone crusher is an efficient crushing solution integrating feeding, crushing and screening in one unit. Available in crawler, wheeled and 4 in 1 types, it can be equipped with jaw, cone or impact crusher for different production needs. With fast setup, high mobility and low operating cost, it is widely used in mining, quarrying and construction projects.
SMAT is a leading global manufacturer of mining machinery and industrial equipment, specializing in the research, development, production and sales of mining crushing machinery, grinding machinery, mineral processing equipment, ball press equipment and generator sets. With efficient, durable and energy-saving equipment as its core competence
Mobile crushers process concrete/bricks on-site, reducing transport costs and enabling instant reuse of materials in urban redevelopment projects.
Track-mounted crushers follow excavation fronts, crushing raw stone/ore directly at extraction sites for efficient material handling in remote areas.
Mobile crushers move with construction processing excavated rock into base materials for immediate roadbed construction.
| 4 in 1 mobile crushing plant | |||
| Capacity | 50-500t/h | ||
| Feeding size | 580-800mm | ||
| Power Supply | Electricity or Genset | ||
| Option 1: For hard materials | Feeder + Jaw Crusher + Cone Crusher + Screening | ||
| Option 2: For medium hardness materials | Feeder + Jaw Crusher + Impact Crusher + Screening | ||
| Option 3: For high-precision crushing | Feeder + Jaw Crusher + Fine jaw crusher + screening | ||

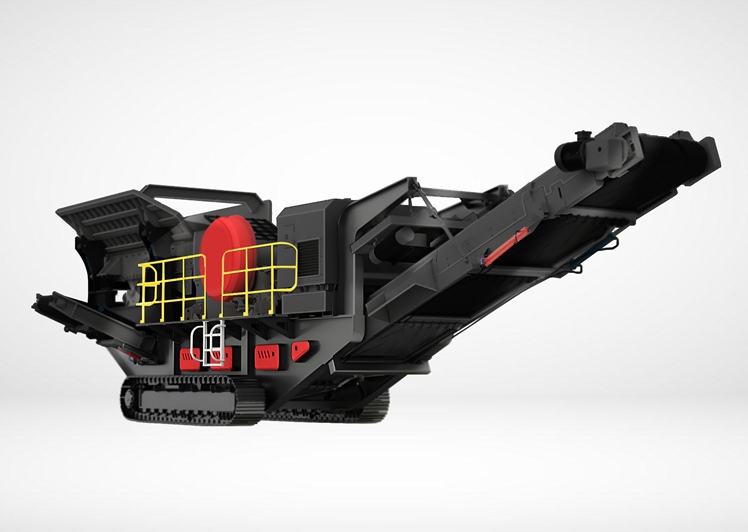

| Model | LTE500 | LTE600 | LTE750 | LTE950 |
| Stock Bin | Steel Structure | Steel Structure | Steel Structure | Steel Structure |
| Feeder (mm) | 3075 | 3895 | 4211 | 5012 |
| Jaw Crusher | PEV500×750 | PEV600×900 | PEV750×1060 | PEV800×1200 |
| Max Feed Size (mm) | 425 | 500 | 630 | 750 |
| Range of Discharge Opening (mm) | 50–100 | 65–180 | 80–180 | 100–275 |
| Capacity (t/h) | 40–110 | 70–120 | 130–260 | 270–320 |
| The Main Belt Conveyor | B650 | B800 | B1000 | B1400 |
| Discharging Belt Conveyor | B800 | B800 | B1000 | B1200 |
| Excavating Belt Machine | B500 | B500 | B500 | B650 |
| Hydraulic System | YZ10 | YZ10 | YZ30 | YZ40 |
| Total Power (kW) | 73 | 78 | 145.5 | 201.5 |
| Frame Configuration | Two-axle | Two-axle | Three-axle | Four-axle |

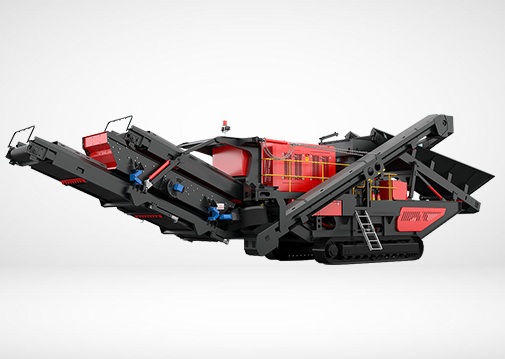

| Model | LTE500 | LTE600 | LTE750 | LTE950 |
| Vibrating Screen | 3YK1548 | 3YK1860 | 3YK2160 | 3YK2160 |
| Cone Crusher | PSGB0917 | PSGB1321 | PSGB1636 | HPT300 |
| Max Feed Size (mm) | 150 | 205 | 313 | 241 |
| Discharge Opening (mm) | 25–38 | 19–51 | 38–64 | 26–45 |
| Capacity (t/h) | 50–100 | 100–150 | 150–220 | 200–250 |
| Discharging Belt Conveyor | B650 | B800 | B1200 | B1200 |
| Hydraulic System | YZ20 | YZ20 | YZ30 | YZ30 |
| Total Power (kW) | 160 | 261 | 261 | 261 |
| Frame Configuration | Two-axle | Two-axle | Three-axle | Four-axle |

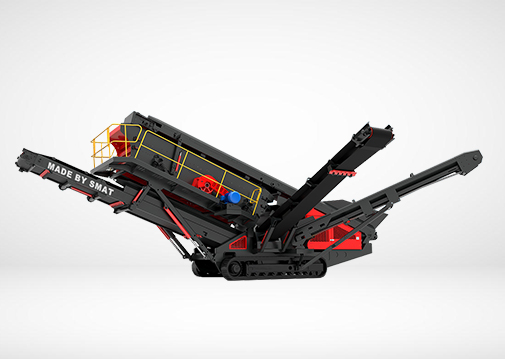

| Model | Screen size(mm) | Decks | Capacity(t/h) | Transport Dimensions (mm) |
| LD2S1548 | 1500×4800 | 2 | 80-150 | 16500x3300x3430 |
| LD2S1860 | 1800×6000 | 2 | 100-180 | 17000×3300x3500 |
| LD2S2160 | 2100×6000 | 2 | 120-240 | 17000x3300x3500 |
| LD3S1548 | 1500×4800 | 3 | 80-150 | 16500x3300x3600 |
| LD3S1860 | 1800x6000 | 3 | 100-180 | 17000x3300x3600 |
| LD3S2160 | 2100x6000 | 3 | 120-240 | 17000×3390x3600 |

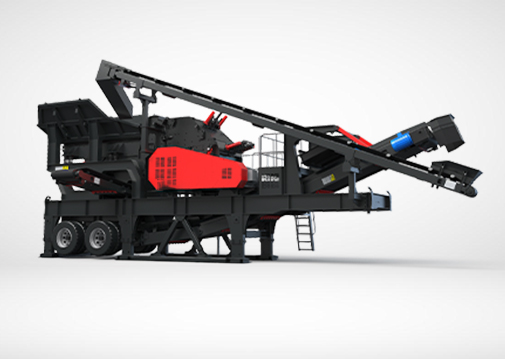

SMAT Mining’s mobile crushing plants bring the power of crushing directly to your job site. Perfect for construction, demolition, or temporary projects, our portable units feature advanced jaw or impact crushers for flexibility and efficiency.
Operate directly on-site with minimal installation, reducing transport costs and enabling fast startup.
Advanced engine technology reduces fuel consumption and lowers operating costs.
Robust structure ensures stable performance, while high mobility enables easy relocation between sites.
Flexible configurations adapt to different materials, capacity needs, and project conditions.
Customized design, Selection consultation
Fast dispatching for goods, Installation and commissioning, Technical training
Spare parts supply, Remote technical support
SMAT Mining’s mobile crushing plants bring the power of crushing directly to your job site. Perfect for construction, demolition, or temporary projects, our portable units feature advanced jaw or impact crushers for flexibility and efficiency.
We provide a wide range of crushing machines, including jaw crushers, cone crushers, impact crushers, hammer crushers, and mobile cursher. Each type is designed for specific applications and materials.
Our machines are capable of processing various materials, including hard rock, ore, limestone, granite, basalt, recycled concrete, and more. They are suitable for mining, quarrying, and recycling operations.
The choice depends on factors like the type of material, required output size, production capacity, and operational conditions. Our team can help you select the best machine based on your specific requirements.
Yes, we offer a comprehensive range of spare parts and dedicated after-sales support to ensure your equipment operates smoothly throughout its lifespan.
